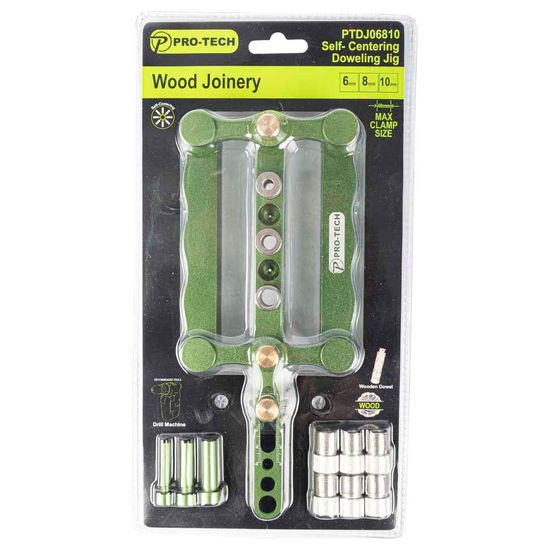

DOWEL JIG SELF-CENTERING 6/8/10MM ALUM. 16MM - 60MM RANGE
Click Image for Gallery
ProTech - Self-Centering Dowel Jig
Application:

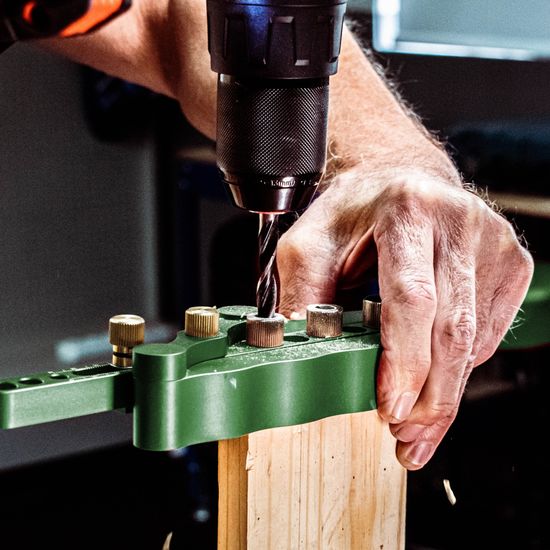

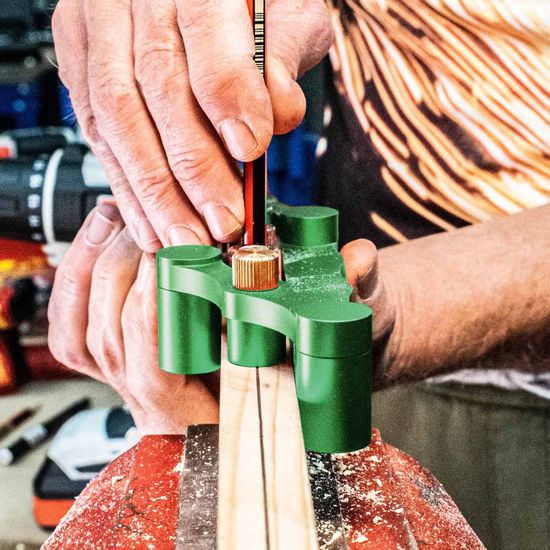

Drilling of 6mm, 8mm & 10mm ø dowel holes, Scoring of 1mm and 2mm ø center lines.
- Good ergonomics, extremely simple and easy to use as well as versatile.
- High-quality and Durable Material - The joinery punch locator is aluminum alloy 6061+ steel HRC50(drill bushing) + brass (nut). High hardness, quality assurance, durable and long service life.
- High Precision - The joinery punch locator provides an improved version and comes with 6mm, 8mm and 10mm bushings and 1mm and 2mm scoring holes for making and marking different sizes of holes.
- Adjustable Stop - The joinery pin locators are specially designed with an adjustable stop which provides drilling
- Convenient and practical. With the joinery pin locators, the jig is convenient and practical for fast and accurate work. It is a great tool for both furniture factories and woodworking enthusiasts.
Download the Spec Sheet:
Download the Instruction Manual:
Specifications
| Description | Specifications |
| Packaging Type | Hanging Blister & Card |
| Weight | 794g |
| Product Material | Aluminium Alloy Body Tempered Steel Drill Bushings Brass Lock Nuts Aluminium Alloy Pin Locators |
| Finish | Green Aluminium Alloy with Anodic Oxidation Treatment |

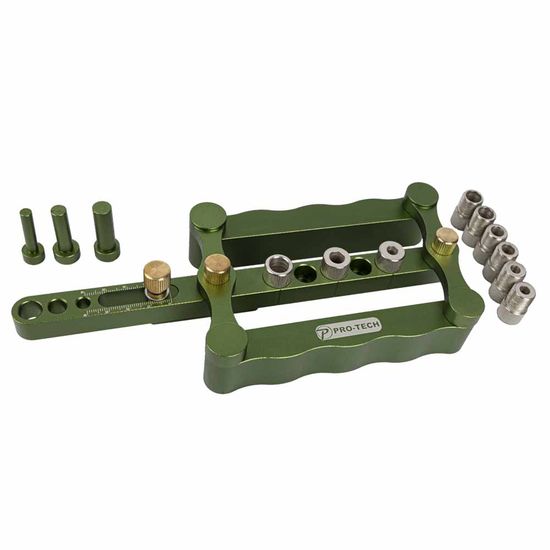

| Specifications | 3 x 6mm Drill Bushings 3 x 8mm Drill Bushings 3 x 10mm Drill Bushings 3 x Pin Locators – 6mm; 8mm & 10mm ø 2 x Scoring Holes - 1 x 1mm & 1 x 2mm Adjustable Stop - 0-40mm |
| Safety | Wear eye protection for wood shavings Wear gloves to protect hands |
