SCREW LOCK LOW STRENGTH FOR SMALL SIZED
Click Image for Gallery

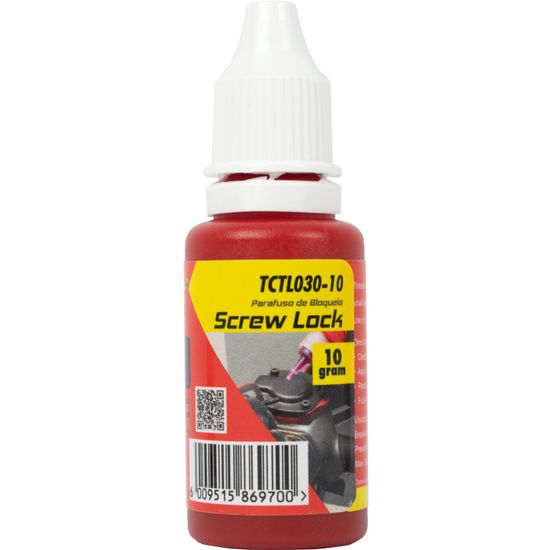

TorkCraft - Screw Lock
QTY: 1 | 10 gram
Application:
Thread locker for small size threads, for use on brass / zinc / steel. Clean surface with an oil free cleaning solvent before applying adhessive.
- Use on:
- Brass
- Zinc
- Steel
- Low Strength
- Anaerobic adhesive
Directions:
- Clean the surface of all oil.
- Apply the glue to both surfaces.
- Parts can be handled after 40 minutes.
- Full strength after 120 minutes.
WARNING: Clean surface with an oil free cleaning solvent before applying adhesive
Download the Instruction manual:
View the Instruction manual:
Download the Material Safety Data Sheet:
View the Material Safety Data Sheet:
Download the Leaflet:
View the Leaflet:
Specifications
| Description | Specifications |
| Viscosity | 500 - 800 mPa. S. |
| Break Away Torque | 10 - 15 N.m. |
| Prevailing Torque | 5 - 10 N.m. |
| Max. Gap Fill | 0.05 mm |
Comparison Chart
| Loctite | TC Product Code | Pratlok |
| 271 | TCTL050 | Stud 10-20 |
| 243 | TCTL040 | Nut 6-10 |
| 277 | TCTL060 | Stud 20+ |
| 222 | TCTL030 | Screw 0-6 |
| 641 | TCTL010 | BRG |
| 638 | TCTL020 | - |
