MINI DRAIN ELECTRONIC 0.5-50LT/HR
Click Image for Gallery
Mini

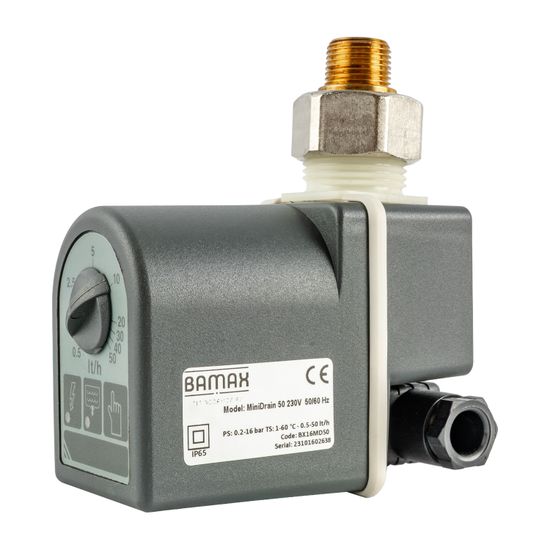

Drain 50 electronic drain
Model GAV MD50
Remove the condensate
The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to drain capacity. Drain capacity is preset by means of a knob located on the control panel.
Regulation is extremely user's friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an automatic flow regulator.
It is equipped with a test button for function check and two LED, one for 'voltage on' and the other for 'valve draining'.
- Timed electronic drain: 0.5 to 50 l/h capacity
- Suitable for large capacity compressors (500 m3/h max delivery)
- Suitable for dryers (950 m3/h max)
- Accessories: Ball cock with built-in filler.
Made in Italy
