MOBILE DUST EXTRACTOR CTM 48 E LE EC B22 R1
Festool Mobile dust extractor CTM 48 E LE EC B22 R1 CLEANTEC
- Order number: FES575286
- Model: CTM 48 E LE EC B22 R1
For maximum safety.
The CTM 48 EC/B22 special extractor with EC-TEC drive is suitable for continuous operation. The robust ABS plastic container is equipped with additional flame protection and is therefore suitable for the safe extraction of aluminium, paper, soot and powder coating dust right through to glass and carbon-reinforced plastics. Thanks to the powerful, durable and brushless EC-TEC motor and its huge container capacity of 48 l, the CLEANTEC CTM 48 LE EC/B22 is ideal for use in industrial environments. Its large container geometry provides maximum volume. The swivelling castor wheels, rear wheels and handle also make it extremely mobile. The flat filter fully integrated in the suction head ensures the full volume is utilised: This means that the gross and net container volumes are virtually identical. The extremely compact high-performance turbine provides the right suction power. A 3900 l/min volume flow means that nothing remains except clean air. Approved for dusts in dust class M.
For maximum safety.
Strengths and benefits
- Conforms with ATEX Directive 2014/34/EU for Zone 22 – dry, combustible dust on machines and tools is reliably extracted
- With a new suction hose: Smooth and flexible – with a smooth exterior which allows it to slide over surfaces perfectly
- With integrated connection for EAA and compressed air tools
- Antistatic function prevents static developing during work
- Approved for dust category M
- Cable holder to keep things tidy
- Economical because of the optimal use of the available volume with a SELFCLEAN filter bag in the container
- EC-TEC motor for continuous use
Main areas of use
- For dust with limit values > 1 mg/m³ (CTL) or > 0.1 mg/m³ (CTM)
- Extraction of dry, flammable dust in zone 22
- Integral automatic electronic switch-on/shut-off for extraction from electric and pneumatic tools
- Suitable for both wet and dry extraction
- container/filter bag capacity 48/46 l
- approved for dust class M
- compressed air connection with additional air flow -I/O- Automatic
- EAA connection
Items included

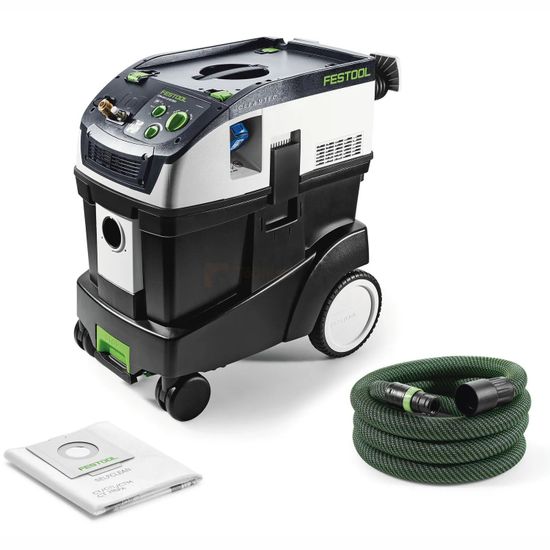

SELFCLEAN filter bag, smooth suction hose dia. 27/32 x 3.5 m AS/CTR, cable holder, compressed air module, in carton
Warranty all-inclusive
Features
Strengths and Benefits
- Conforms with ATEX Directive 2014/34/EU for Zone 22 – dry, combustible dust on machines and tools is reliably extracted
- With a new suction hose: Smooth and flexible – with a smooth exterior which allows it to slide over surfaces perfectly
- With integrated connection for EAA and compressed air tools
- Antistatic function prevents static developing during work
- Approved for dust category M
- Cable holder to keep things tidy
- Economical because of the optimal use of the available volume with a SELFCLEAN filter bag in the container
- EC-TEC motor for continuous use
Product Application
- For dust with limit values > 1 mg/m³ (CTL) or > 0.1 mg/m³ (CTM)
- Extraction of dry, flammable dust in zone 22
- Integral automatic electronic switch-on/shut-off for extraction from electric and pneumatic tools
- Suitable for both wet and dry extraction
Scope of Delivery
SELFCLEAN filter bag, smooth suction hose dia. 27/32 x 3.5 m AS/CTR, cable holder, compressed air module
Accessories
Technical Data
| Drive type Mains |
| Power consumption 150 – 1100 watt |
| Max. volume flow 3400 l/min |
| Max. vacuum 23000 Pa |
| Filter surface area 6318 cm² |
| Rubber-insulated mains cable 7.5 m |
| Container/filter bag capacity 48/46 l |
| Dimensions (L x W x H) 630 x 406 x 640 mm |

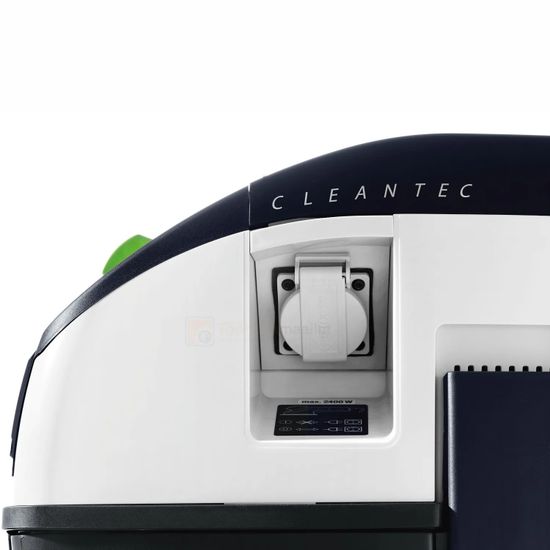

| Max. appliance socket connected load 2400 watt |
| Dust class M |
| Weight 18.6 kg |
Package Dimensions
- Logistic Weight: 25.5 kg
- Package L X W X H: 98 cm X 41.5 cm X 74 cm
- Package Volume: 300.958 dm3
Scope of Delivery
SELFCLEAN filter bag, smooth suction hose dia. 27/32 x 3.5 m AS/CTR, cable holder, compressed air module
