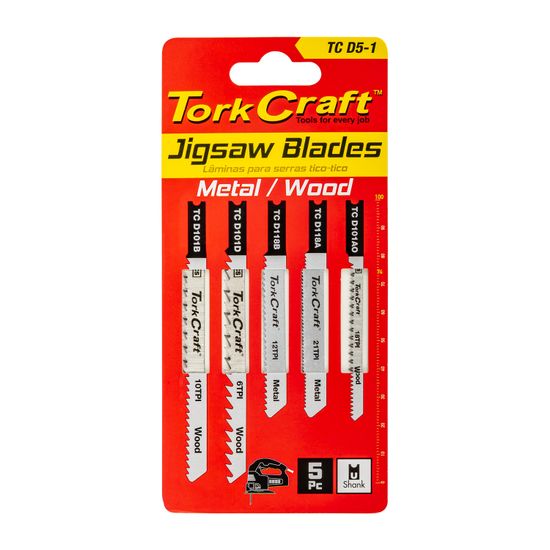

U-SHANK JIGSAW BLADES 5 PIECE ASSORTED
Application:
The set includes 1 of 5 different jigsaw blades:
- TC D101B jigsaw blade that cuts:
- wood up to 30mm.
- PVC.
- TC D101D jigsaw blade that cuts:
- wood up to 50mm.
- TC D118B jigsaw blade that cuts:
- sandwich panels from 2-5mm.
- alu. sheet metal up to 5mm.
- TC D118A jigsaw blade that cuts:
- sandwich panels from 1-3mm.
- alu. sheet metal up to 3mm.
- TC D101AO jigsaw blade that cuts:
- wood up to 15mm.
- PVC.
Compatibility:
- RYOBI
- HITACHI
- BLACK&DECKER
- DEWALT
- MAKITA
- SKIL
NOTE:
The cutting part of the blade is +/-26mm less than the total length.
T-SHANK:
The T-shank jigsaw blades are compatible with all new jigsaws. Some jigsaws have a quick release system that allows the user to replace jigsaw blades without the help of any tools.
U-SHANK:
The U-shank is an older shank style and is not as popular as the T-shank. These blades require the user to fasten the blade with a retaining screw.
Teeth Per Inch (TPI):
The Teeth Per Inch is a standard measurement to determine the amount of teeth measured within 25.4mm. This is usefull to know when blades are designed to cut specific materials and what the finish of the cut will be. Metal cutting blades have a much finer TPI than wood cutting blades and the teeth are also smaller. Fast cutting blades have less TPI than clean cutting blades.
Distance between teeth:
This is similar to the teeth per inch measurement, but makes it easier to know whether a jigsaw blade is a fast cutting blade, or a clean cutting blade. The bigger the distance between the teeth, the bigger the teeth will be.
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
 |
 |
 |
 |
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
