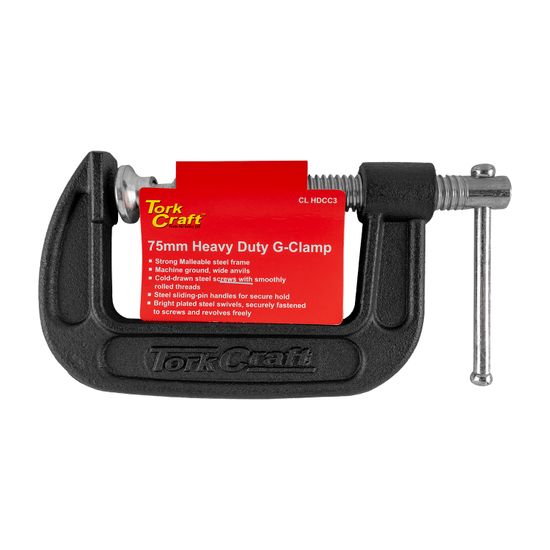

CLAMP G HEAVY DUTY 75MM 3'
Click Image for Gallery
Heavy duty G-clamp
Clamp capacity: 75mm
The G-clamp is used to secure workpieces to a bench or a template during an assembly. It can also be used in woodwork projects to glue/join pieces of wood.
G-clamps are extremely strong, thanks to the malleable cast iron construction and the strong threaded spindle.
Application:
- Wood working
- Manufacturing
- Construction
- Automotive
Features
- A strong malleable cast iron frame.
- Machine ground, wide anvil.
- Cold-drawn steel screw with smoothly rolled thread.
- Steel sliding pin handle for a secure hold.
- Bright plated steel swivel spindle that is securely fastened and revolves freely.
| Description | Specification |
| Material | Body: Cast Iron Handle: Cold-drawn steel |
| Packaging | Hanging tag |
| Dimensions | 173(L) x 15(H) x 85mm(W) |
| Weight | 570g |
| Max clamping length | 75mm |
| Clamping force | 4kN |
