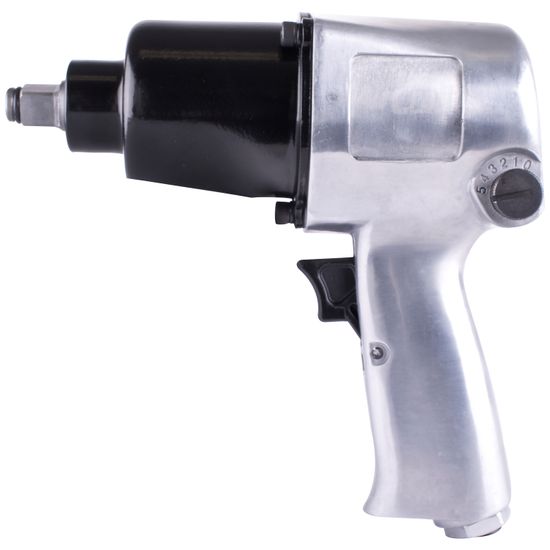

AIR IMPACT WRENCH 1/2' TWIN HAMMER
Click Image for Gallery
Impact wrench 1/2' Drive
The impact wrench is used to deliver high torque to either loosen or tighten projects in many industries from automotive repair to heavy equipment maintenance.
In operation, a twin hammer is accelerated by the motor to make contact with the 1/2' output shaft to deliver high impact torque as much as 567 Newton-Meter.
A compressor is required with an air flow delivery of at least 291 l/min at 6.3 Bar to make use of the impact wrench.
Make sure that an in-line lubricator is fitted with pneumatic oil (AT OIL).
Use 1/2' impact sockets
| Description | Specification |
| Working pressure | 6.3 Bar |
| Maximum torque | 567 Nm |
| Free speed | 7500 rpm |
| Average air consumption | 291 l/min |
| Suggested minimum compressor HP | 3 HP |
| consider safety for your health and the people around you | |||
General safety suggestions:It is advisable to always have the following items nearby and in a good condition
|
|||
 |
 |
 |
 |
|
Wear Gloves
|
Eye Protection
|
Hearing Protection
|
Dust Mask
|
