JORGENSEN 60'' 1524MM STEEL I BAR CLAMP

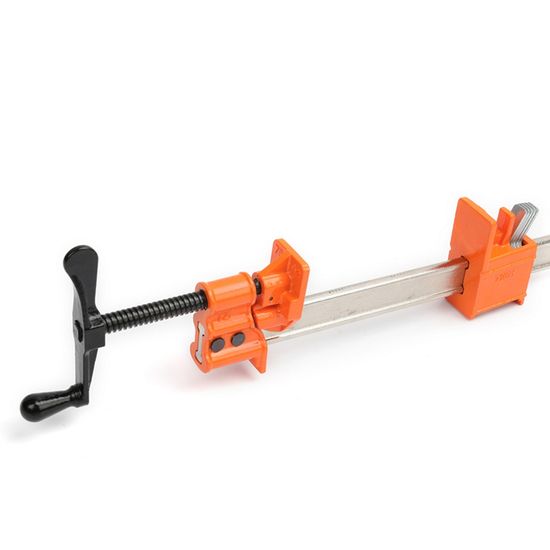

The 60-Inch Steel I-Bar Clamp
Information
There's a reason Jorgensen I-bar clamps are our most popular heavy-duty steel bar clamps. The special steel I-bar design is tremendously strong and stiff, and the clamp head is fixed for maximum resilience. A cold-drawn steel screw with smoothly cut acme threads attaches to ductile cast-iron castings to complete the clamp. Depend on this clamp to withstand the rigorous daily demands of school shops, commercial woodworking operations, metalworking factories, welding applications, and serious woodworking applications.
The 7236 Steel I-Bar Clamp from Jorgensen is designed for everyday use, including use in school shops, commercial woodworking, metalworking factories, welding applications, and professional woodworking.
The fixed head is threaded to accommodate the screw, and a multiple-disc-clutch holds securely at any point on the bar. It features a high-carbon steel bar, malleable and ductile iron castings, and 2' clamping faces. The screw is constructed of cold-drawn steel and contains smoothly cut Acme threads, hardened steel thrust bearing, and a crank-type handle. There are five clutch discs and one clutch spring, all of them made of hardened, plated steel.
Features
- 60 (1524 mm) inch opening capacity
- 7000lb (3175.1 kg) Load Limit
- Bar: high-carbon steel
- Castings: iron, powder-coated finish
- Screw: steel
- Clutch discs: steel
- Five clutch discs and one clutch spring.
| Part No. | Opening Cap | Load Limit |
| #7260 | 60 inch | 7000 lb |
| 1524 mm | 3175.1 kg |
