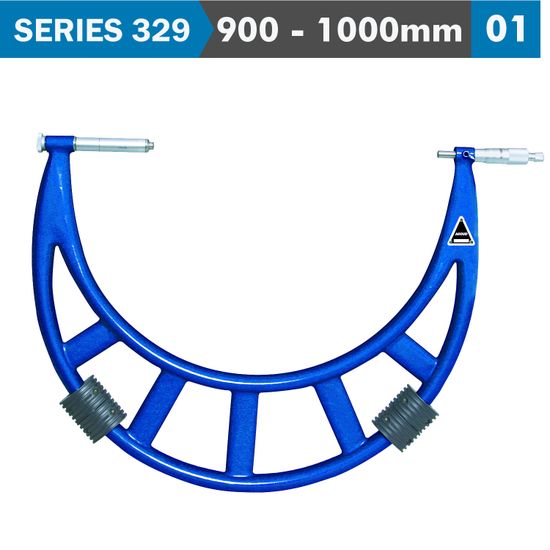

OUTSIDE MICROMETER 900-1000MM 0.022MM ACC. 0.01MM GRAD. WITH EXTENSION

Out Of Stock OUTSIDE MICROMETER 900-1000MM 0.022MM ACC. 0.01MM GRAD. WITH EXTENSION
Large Outside Micrometer 900 - 1000mm Range (0.022mm Accuracy)
SERIES 329

This large outside micrometer is a precision measuring instrument specifically designed to measure the external dimensions of larger objects, such as the outside diameter of large shafts, the thickness of wide plates, or the dimensions of large machine parts. These micrometers are built to handle measurements beyond the standard 25 mm (1 inch) range and can extend up to several meters in some specialized cases.

  • Adjust collars for different measuring ranges
  • Graduation 0.01mm
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards

Applications

  • Heavy Machinery and Equipment: Used to measure the dimensions of large components, such as the diameter of large shafts, the thickness of machine parts, and the width of large plates, ensuring they meet design specifications.
  • Aerospace and Automotive Industries: Essential for measuring large parts in industries where precision is critical, such as the outer dimensions of engine components, fuselage sections, or large structural elements.
  • Construction and Engineering: Employed to measure the thickness of large materials like beams, panels, or pipes, ensuring they meet the required tolerances for structural integrity.
  • Manufacturing and Quality Control: Used in the inspection of large-scale products, verifying that they conform to precise dimensional standards.

In summary, a large outside micrometer is an essential tool for accurately measuring the external dimensions of large objects. Its robust design, precision, and adaptability make it invaluable in industries where large-scale measurements are critical, such as manufacturing, construction, and heavy machinery.

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Features at a glance

  • Adjust collars for different measuring ranges
  • Graduation 0.01mm
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standards

In summary, a large outside micrometer is an essential tool for accurately measuring the external dimensions of large objects. Its robust design, precision, and adaptability make it invaluable in industries where large-scale measurements are critical, such as manufacturing, construction, and heavy machinery.

Technical Specifications

Cat No Range Accuracy h L Setting Std's
AC329-016-01 300-400mm 11µm 250 410 325,375mm
AC329-020-01 400-500mm 13µm 275 510 425,475mm
AC329-024-01 500-600mm 14µm 320 610 525,575mm
AC329-028-01 600-700mm 16µm 370 710 625,675mm
AC329-032-01 700-800mm 18µm 425 810 725,775mm
AC329-036-01 800-900mm 20µm 475 910 825,875mm
AC329-040-01 900-1000mm 22µm 575 1010 925,975mm
  • Views: 74
  • Brand: ACCUD
  • Product Code: AC329-040-01
  • Availability: Out Of Stock
0 Product(s) Sold
  • N$ 27,163.46
  • Ex Tax: N$ 23,620.40

Tags: Brand ACCUD, Outside Micrometer, Large Micrometers
