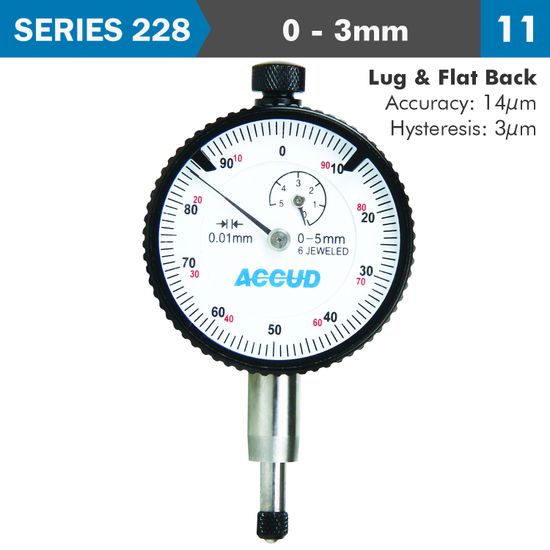

DIAL INDICATOR 3MM BEZEL 0.01MM GRAD. LUG&FLAT BACK
Click Image for Gallery
Dial Indicator - 3mm Range
SERIES 228
SERIES 228
A dial indicator, also known as a dial gauge, is a precision measurement tool used to measure small linear distances and variations in distance. It converts the linear movement of its spindle into the rotational movement of a dial pointer, allowing for highly accurate readings.
Bezel: ⋄40mm
Graduation: 0.01mm with limit hands
Range: 0mm - 3mm
Accuracy: 14µm
Hysteresis: 3µm
Scale: 0 - 100
Back: lug and flat back
Manufacturer Cat No: 228-003-11
Applications
Dial indicators are widely used in various fields such as manufacturing, machining, and quality control for tasks including:
- Measuring the flatness, roundness, and alignment of parts.
- Checking runout, deflection, and thickness.
- Inspecting the precision of machine tools and fixtures.
- Comparing dimensions to ensure conformity to specifications.
The versatility and precision of dial indicators make them indispensable tools in any setting where accurate measurement of small distances is crucial.
