DIG. HEIGHT GAUGE 300MM 0.04MM ACC. 0.01MM RES. S/STEEL

DIG. HEIGHT GAUGE 300MM 0.04MM ACC. 0.01MM RES. S/STEEL

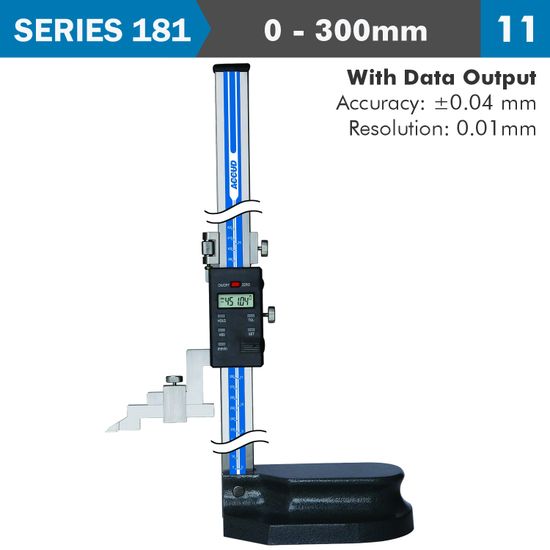

Digital Height Gauge 300 mm
SERIES 181-11

Manufacturer Cat No: 181-012-11

Digital Height Gauge with Data Output

Workshop electronic/digital height gauge by ACCUD, measuring range 0-300mm | 12' and resolution 0.01mm | 0.0005'. The height gauge is equipped with ABS absolute measurement function, i.e. the ability to measure against the set zero value. Made of stainless steel (except the base). Measuring tip - made of sintered carbide. Equipped with a data output port.

Made of stainless steel.

Additionally in the set - the tip with the sensor holder, with a hole with a diameter of 8 mm.

Features at a glance

  • Made of stainless steel (except the base)
  • USB data output
  • With clamps (Ø 8 mm holder)
  • Carbide tipped scriber
  • Functions: inch/mm, ABS/INC, data hold, tolerance set, data preset

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Features at a glance

  • Made of stainless steel (except the base)
  • USB data output
  • With clamps (Ø 8 mm holder)
  • Carbide tipped scriber
  • Functions: inch/mm, ABS/INC, data hold, tolerance set, data preset

Technical parameters:

Description Spec
Measurement range:
0-300mm / 12 in
Resolution: 0.01 mm / 0.0005 '
Accuracy: +/- 0.04 mm
Mm / inch switch: YES
ABS / INC function: YES
On / Off / Zero button: YES
Travel lock: YES
Fine adjuster: YES
HOLD function (hold result): YES
Data output socket: YES
Dimension a1: 76 mm
Dimension a2 : 25 mm
Dimension b1 : 135 mm
Dimension b2 : 45 mm
Dimension c : 23 mm
Dimension h : 80 mm
Dimension L: 470 mm
Construction: stainless steel tracer tip - carbide
Included: instrument, tracer tip, tip with sensor holder



  • Views: 137
  • Brand: ACCUD
  • Product Code: AC181-012-11
  • Availability: 2
0 Product(s) Sold
  • N$ 6,309.71
  • Ex Tax: N$ 5,486.70

Tags: Measuring Tools, Height Measurement, Height Gauge, Brand ACCUD
