DIG. CALIPER 500MM 0.05MM ACC. S/STELL 0.01MM RES.
Out Of Stock
Click Image for Gallery

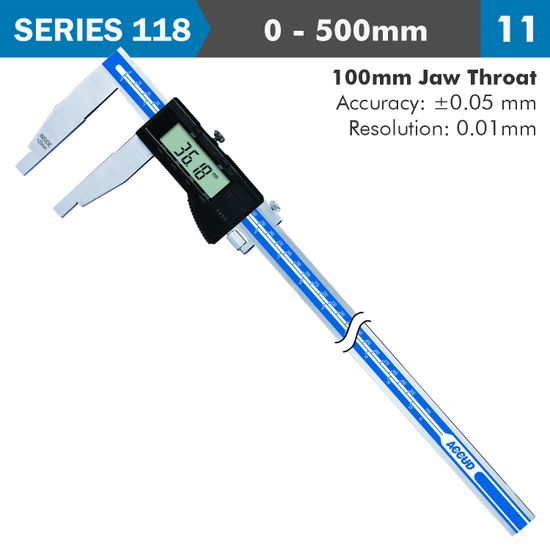

Long Jaw Digital Caliper
500 mm SERIES 118-11
500 mm SERIES 118-11
Manufacturer Cat No: 118-020-11
Range: 0 mm - 500 mm
Resolution: 0,01 mm or 0.0005 in
Accuracy: ±0,05 mm
Electronic Caliper with extended jaws
Professional quality workshop electronic unidirectional caliper with measuring range of 0 - 500 mm | 20' (in) and measuring resolution 0,01mm / 0.0005'. A USB data output slot makes measurement recording possible to a computer. Data cable code 100-15.
When using the caliper for inside measurements, add 20mm as engraved on the jaw end. See measurement explaind as 'w' in the specifications tab.
Made of stainless steel.
Features at a glance
- Resolution: 0.01mm / 0.0005'
- Buttons: on/off, zero, mm/inch, ABS, data preset
- Data output (cable code:100-15)
- 100 mm jaw length
- Made of stainless steel
Technical parameters:
| Description | Spec |
| Measurement range: | 0 - 500mm / 20' |
| The length of the jaws h: | 100 mm |
| Resolution: | 0.01 mm | 0.0005 ' |
| Accuracy: | ± 0.05 mm |
| Jaw marking: | for internal measurements add 20mm |
| Dimension a: | 12 mm |
| Dimension c: | 24 mm |
| Dimension w: | 20 mm |
| ABS function | YES |
| Button Off / On: | YES |
| ZERO button: | YES |
| mm / inch switch: | YES |
| Data output socket: | YES |
| Lock type: | screw |
| Construction: | stainless steel |
