R-SPL II SAFETY PLUS - LOOSE BOLT M10X100MM X20 PER BOX
Out Of Stock
Click Image for Gallery

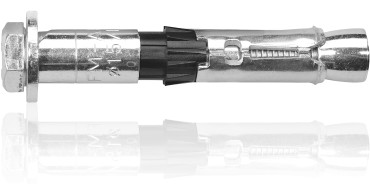

R-SPL-II-L SafetyPlus Loose Bolt
Size: M10 x 100 mm
Qty: 20 per Box
High performance mechanical anchor - loose bolt option. Suitable for demanding safety-critical applications with highest tension and shear loads. Seismic category C2 for Structural applications.
Features and benefits
- Mechanical anchor for highest tension and shear loads
- Seismic category C2 for Structural applications. Seismic category C1 for non-structural use in areas with low seismic risk.
- For usage with required fire resistance
- Option 1 ETA for Cracked and Non- Cracked Concrete.
- Anti-rotation brush to prevent rotation during installation.
- Anchor's construction allows easy through-installation (drilling and installation through fixed material)
- Three types of tips (nut, flat or tapered bolt) allow simple fitment for installed element
- 8.8 grade steel material of anchor provides high durability
Base material
- Cracked concrete C20/25-C50/60
- Non-cracked concrete C20/25-C50/60
- Unreinforced concrete
- Reinforced concrete
Applications
- Structural steel
- Masonry support
- Cladding restraints
- Road Signs
- Heavy machinery
- Racking systems
- Industrial doors
- Safety barriers
| Description | Spec |
| Part No: | R-SPL-II-10100/20L |
| Anchor Diameter | 15 mm |
| Anchor Length | 100 mm |
| Thread | M10 |
| Max Fixture Thickness | 20 mm |
| Hole Dia. Ø in fixture | 17 mm |
| Hole Dia. Ø in substrate | 15 mm |
| Hole Depth in substrate | 95 mm |
| Wrench Size | 17 mm |
| Quantity per box | 20 |
| Barcode | 5010445007279 |
Installation guide
 |
 |
 |
 |
 |
|
