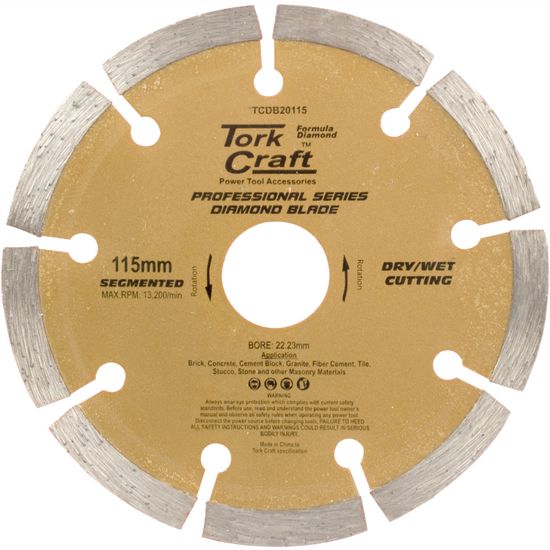

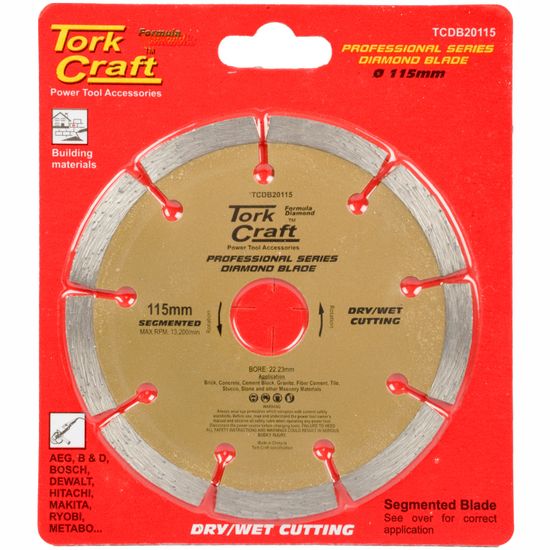

DIAMOND BLADE 115MM SEGMENTED PROFESIONAL
MAX RPM: 13,300
USE: Brick, concrete, cement block, granite, fiber cement,
tile, stucco, stone and other masonry materials.
What is a diamond blade?
A diamond blade is composed of a circular steel core and the diamond impregnated segments. The segments are seperated by slots in the core.
These slots assist in cooling the blade during operation by allowing water (wet cutting) or air (dry cutting) to flow between the segments. The segments or rims are a mixture of diamond powder and metal powders. The diamonds are industrial diamonds of different sizes and qualities depending on the material to be cut as well a the blade type.
How does a diamond blade work?
The individual diamond crystals exposed on the leading edge and the sides of the segment or rim carry out the cutting. The operator pushes the rotating blade into the material and the surface diamonds thus exposed mill a groove in the material. When the blade mills the material, the latter exerts wear on the blade. During cutting the exposed diamonds may crack or break. The material simultaneously starts to abrade the metal matrix, which releases more diamonds.
The more abrasive the material, the more rapid the tendency to wear down the matrix. Blades for cutting hard, denseless abrasive materials (such as tile, bricks, stone or cured concrete), require a softer metal matrix.
This will wear down faster, replacing the worn diamonds fairly quickly so that the blade continues to cut.
Blades for cutting soft, abrasive materials (such as green concrete and asphalt), must have a hard, abrasion-resistant metal matrix in order to retain the diamonds for a longer time.
Water will prevent the blade from overheating:
It will greatly reduce the amount of harmful dust created by cutting. Remove the slurry from the cut, and extend the life of the blade.
Different methods of making diamond blades:
Laser micro-fusion enables the segment to be welded to the core. This bond is the most powerful and enables the tool to be used for dry cutting and drilling without segment loss.
Silver brazing solder melts at high temperaturs between the segment and the core and binds the two elements together. Used for wet cutting, drilling and grinding.
First pressed with a press machine under normal conditions, then laid in sinter machine under high pressure and temperatures making the compressed metal powder melt to a solid bond.
Hot pressed sintering:
Pressed with hot press machine under high temperature and pressure, making the compressed metal powder melt to a solid bond.
Continuous smooth rim:
Provides the smoothest cut in ceramic tiles and ornamental stones.
May produce slight chipping, but generally have a longer life and lower cost per cut than continous rim blades.
Provide the longest life and lowest cost per cut, but are only suitable for work where chipping is not a problem.
When cutting without water:
The blade should be allowed to cool off periodically. Cooling can be increased by allowing the blade to spin freely out of the cut.
|consider safety for your health and the people around you|
General safety suggestions:
It is advisable to always have the following items nearby and in a good condition
Diamond blades are unable to withstand the forces involved at elevated temperatures when cutting dry. It will be subject to rapid tool wear and possible failure.
